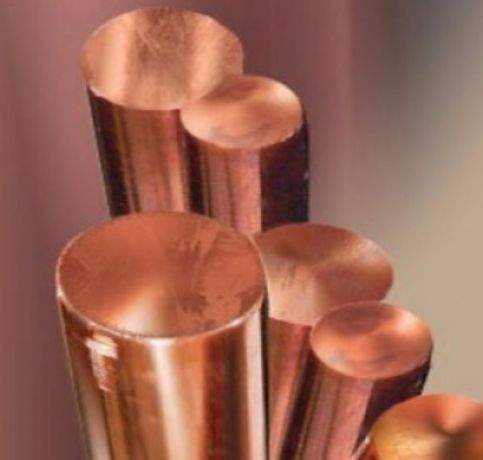

From the heart of Hamilton, New Zealand, Hemi Metals proudly crafts and supplies premium Copper C10300 Bars and Rods, bringing exceptional quality right to your doorstep. We understand that dependable materials are the foundation of any successful project, which is why our commitment to precision and local service ensures you receive a product you can trust. Whether you’re a local engineer or an international partner, we provide the reliable, high-performing copper you need to build with confidence.
C10300 is essentially pure copper, known for its excellent electrical and thermal conductivity, which is second only to silver. This high purity also gives it outstanding ductility and formability, allowing it to be easily shaped and fabricated. While it’s known more for its conductive properties than sheer strength, it offers good corrosion resistance, making it a wonderfully versatile and manageable material for a wide range of applications where efficient energy transfer is the top priority.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

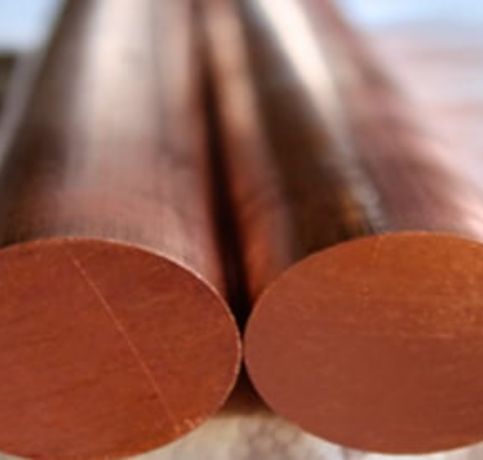

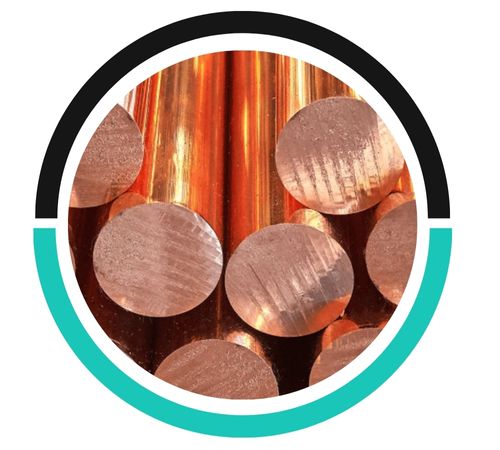

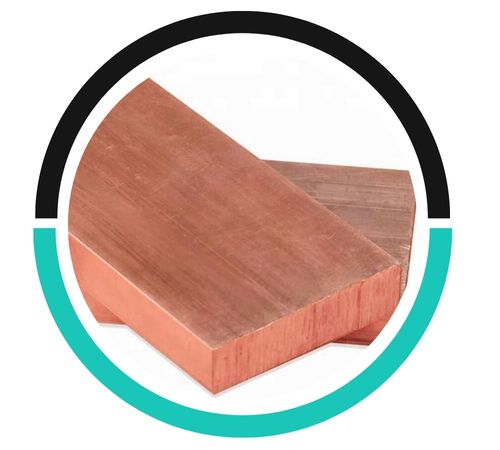

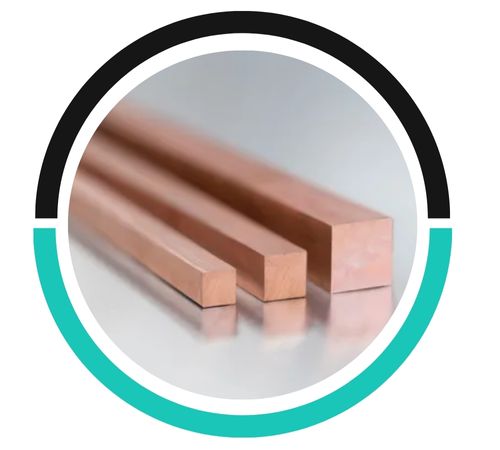

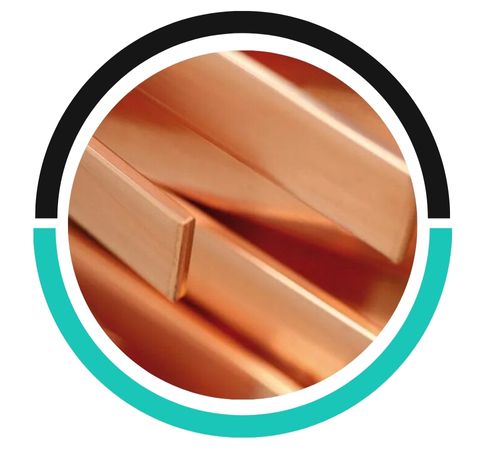

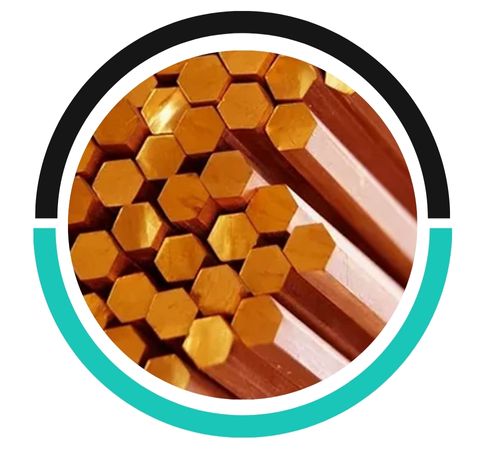

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C10300 |
| Treatment | Maximum* | Minimum* |
|---|---|---|
| * Temperature is measured in Fahrenheit. | ||
| Hot Working Temperature | 1600 | 1400 |
| Annealing | 1200 | 700 |
| Alloy Designation | |
|---|---|
| DIN CEN/TS 13388 | CW021A |
| EN | Cu-HCP |
| UNS | C10300 |
| Typical values in annealed temper at 20 °C | |||
|---|---|---|---|
| Thermal expansion coefficient | 20 .. 300 °C | 16.9 | 10-6/K |
| Density | 8.92 g/cm³ | ||
| Thermal conductivity | 385 | W/(m·K) | |
| Modulus of elasticity | GPa | 130 | GPa |
| Specific heat capacity | 0.385 J/(g·K) | ||
| Electrical conductivity | IACS | 98 % | |
| Electrical conductivity | MS/m | 57 | MS/m |
| Thermal coefficient of electrical resistance | (0 .. 100 °C) | 3.7 | 10-3/K |
| Mechanical Properties (EN 1652) | ||||||
| Tensile Strength Rm | Hardness HV * | Temper | Yield Strength Minimum Rp0.2 | Elongation Minimum A50mm | Bending 90° gw bw rel. Bending Radius R/T | |
|---|---|---|---|---|---|---|
| MPa | HV | MPa % | Strip Thickness ≤ 0.50mm | |||
| ≥ 360 | ≥ 110 | R360 | 320 | 2 | 0 | 0.5 |
| 240 .. 300 | 65 .. 95 | R240 | 180 | 8 | 0 | 0 |
| 220 .. 260 | 40 .. 65 | R220 | ≤ 140 * | 33 | 0 | 0 |
| 290 .. 360 | 90 .. 110 | R290 | 250 | 4 | 0 | 0 |
To select the right Copper C10300 Bars and Rods, consider factors such as conductivity, corrosion resistance, strength requirements, and the specific environmental conditions of your application.
Yes, Copper C10300 Bars and Rods are fully recyclable, retaining their properties even after recycling, making them an eco-friendly option for sustainable industrial applications.
Yes, Copper C10300 Bars and Rods can be used for potable water applications due to their corrosion resistance, antimicrobial properties, and compliance with drinking water standards.

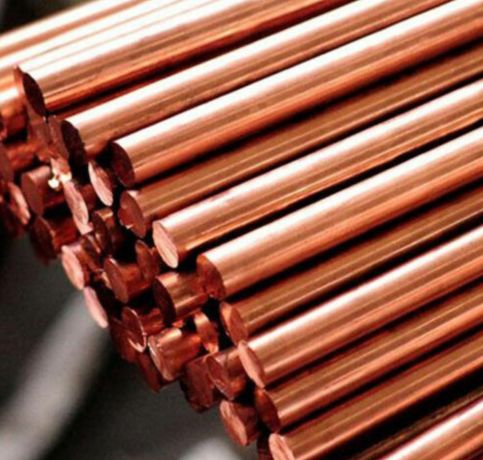

These bars and rods are the workhorses of industries that rely on efficient energy flow. You’ll often find them expertly crafted into essential electrical components like bus bars, connectors, and waveguides. Their superb thermal properties also make them ideal for heat exchanger tubes, plumbing fittings, and various architectural details. Essentially, wherever electricity needs to travel without resistance or heat must be effectively managed, C10300 copper provides the reliable, high-performance solution that keeps systems running smoothly and efficiently.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hemi Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hamilton New Zealand
