Hemi Metals, located in Hamilton, New Zealand, stands out as a top manufacturer and supplier of high-performance Inconel 617 Bars and Rods, known for their remarkable quality and dependability. With a strong commitment to industries that require exceptional heat and corrosion resistance, Hemi Metals guarantees that each product adheres to rigorous international standards. Inconel 617, a nickel-chromium-cobalt-molybdenum alloy, is perfect for high-temperature applications, delivering impressive strength and oxidation resistance. By prioritizing precision manufacturing, timely delivery, and customer satisfaction, Hemi Metals has become a reliable partner for sectors like aerospace, power generation, and chemical processing, both in New Zealand and beyond.
The composition of Inconel 617 Bars and Rods primarily includes nickel (around 50–55%), chromium (20–22%), cobalt (10–12%), and molybdenum (8–10%), along with small amounts of iron, manganese, and other elements. This alloy showcases excellent high-temperature strength, boasting a tensile strength of 827 MPa at room temperature, and maintains superior creep-rupture properties even at temperatures reaching 982°C. Its unique composition offers outstanding resistance to oxidation, carburization, and thermal fatigue, making it incredibly durable in harsh environments. The alloy’s toughness and ductility, paired with excellent weldability, make it a dependable choice for critical engineering applications that demand long-lasting performance at elevated temperatures.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

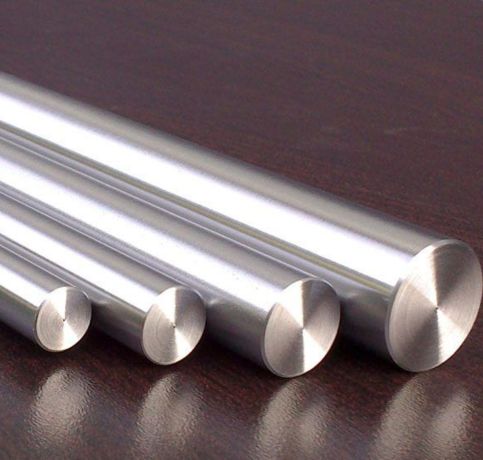

| 617 Inconel Round Bars size | Diameter: 3-~800mm |

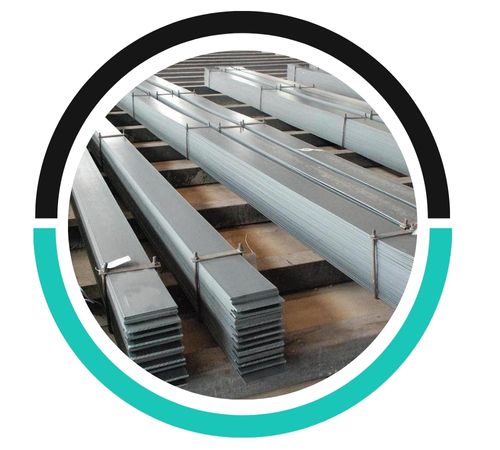

| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |

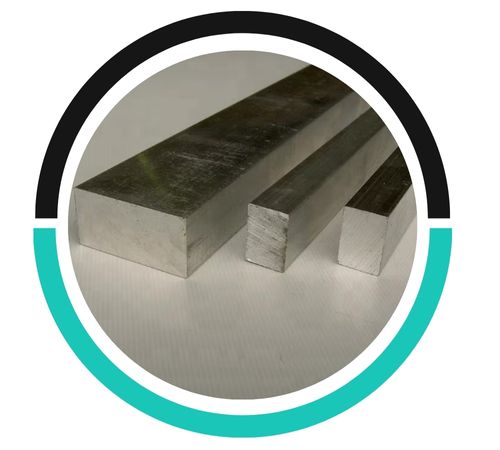

| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |

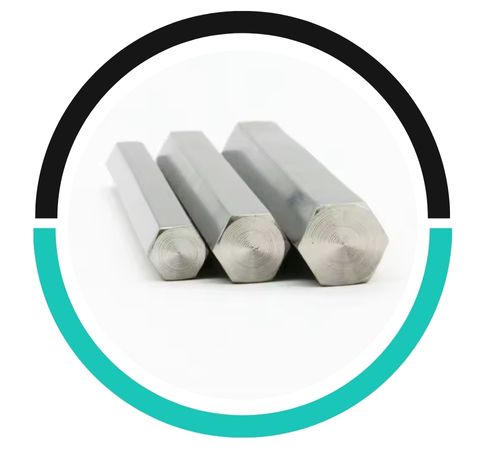

| Inconel 617 Hex Bar size | 2-100mm A/F |
| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

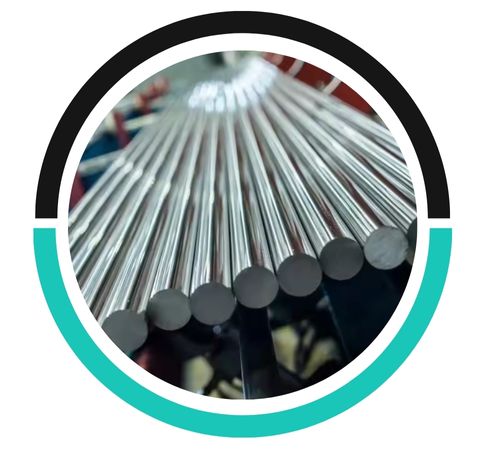

| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |

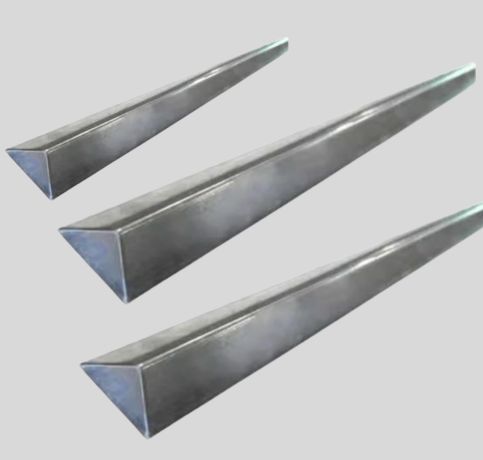

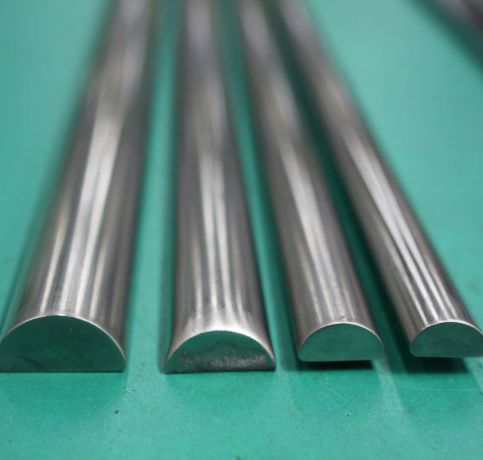

| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Yes, Inconel 617 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, they can be tailored in terms of size, dimensions, and specifications to meet specific industrial requirements.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@hemimetals.co.nz
Inconel 617 Bars and Rods find extensive use in high-temperature and corrosive settings across various industries. In the power generation field, they are utilized in gas turbines, furnace components, and heat exchangers. The chemical and petrochemical sectors rely on them for processing equipment, reactors, and piping that face oxidizing and carburizing conditions. In aerospace, they are essential for jet engine components and exhaust systems, where heat resistance and strength are paramount. Furthermore, Inconel 617 is also suitable for nuclear reactors and steam generators, showcasing its versatility and reliability in demanding applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hemi Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hamilton New Zealand
