Nitronic 50 Bars and Rods are top-notch austenitic stainless steel products that stand out for their impressive corrosion resistance, exceptional mechanical properties, and remarkable durability. With nearly double the yield strength of standard stainless steels, they excel in tough environments. Nitronic 50 is particularly resistant to pitting, crevice corrosion, and stress-corrosion cracking, even in challenging marine and chemical-processing settings. Plus, they maintain good toughness at both high and low temperatures, making them a go-to choice for applications that demand reliable performance, structural integrity, and a long lifespan.
This alloy is mainly made up of chromium, nickel, and manganese, with added nitrogen and molybdenum to boost its strength and corrosion resistance significantly. It offers excellent tensile and yield strength, high toughness, and outstanding resistance to chloride-induced corrosion. Nitronic 50 remains stable during thermal cycling and retains good ductility over a wide temperature range. Additionally, it boasts strong wear resistance, good fatigue strength, and excellent weldability and formability, making it perfect for high-performance components.
| Grade | Nitronic Alloy 50 / XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

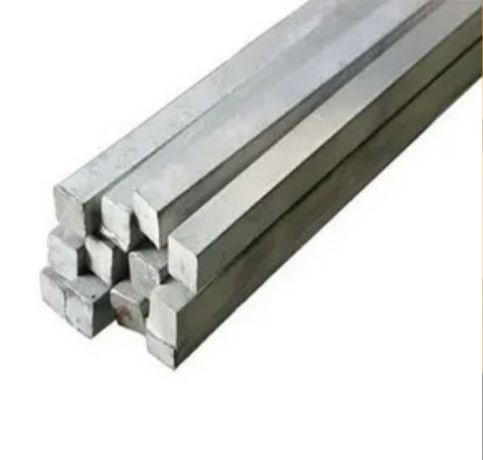

| Nitronic 50 Square bar size | 4 to 100mm |
| Nitronic Alloy 50 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

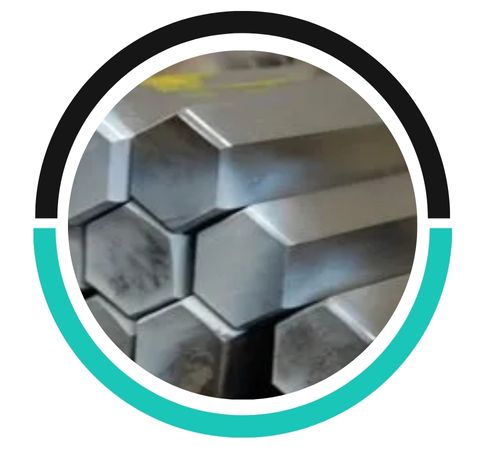

| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

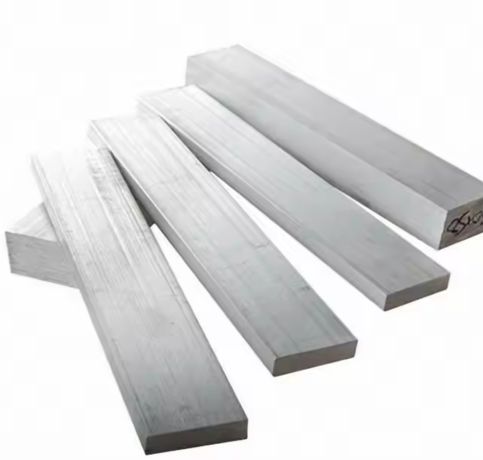

| Nitronic Alloy 50 Rectangles Size | 33 x 30mm to 295 x 1066mm |

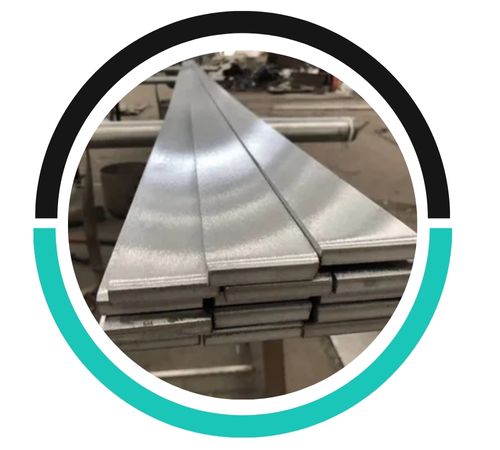

| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 50 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 50 Section | 3.0 to 12.0mm thickness |

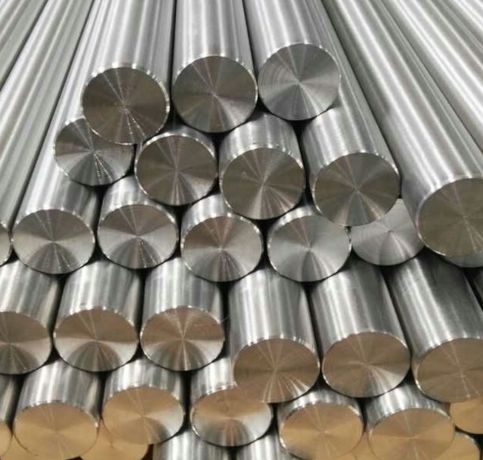

| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic 50 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 50 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 50 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 50 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic 50 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 50 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 50 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 50 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 50 | S20910 | 1.3964 |
Nitronic 50 rods typically come in diameters ranging from 1/8" to 6" and lengths from 12" to 144". Custom sizes may also be available based on specific requirements.
Yes, Nitronic 50 bar can be welded using conventional methods like TIG and MIG welding. However, proper preheat and post-weld heat treatment are recommended for optimal results.
Nitronic 50 rods are available in various sizes, ranging from 1/8" to 12" in diameter. Finishes include mill, polished, and ground, depending on specific requirements and applications.
You’ll find Nitronic 50 Bars and Rods widely used in marine engineering, chemical processing plants, pulp and paper equipment, and oil and gas systems, all thanks to their superior corrosion resistance. They’re ideal for pump shafts, valves, fasteners, heat exchanger components, and structural parts that face aggressive corrosive environments. The alloy’s high strength and stability also make it a great fit for cryogenic systems, high-pressure components, and heavy-duty industrial machinery. With its unique blend of strength, corrosion resistance, and durability, Nitronic 50 ensures reliable performance across a variety of critical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
