Hemi Metals, located in Hamilton, New Zealand, has built a solid reputation as a reliable manufacturer and supplier of high-performance Nimonic 115 Bars and Rods. They’re well-known for their precision engineering, consistent quality, and dependable service. Hemi Metals specializes in materials that thrive in extreme temperatures and high-stress situations. Their Nimonic 115 Bars and Rods are crafted using cutting-edge metallurgical techniques, ensuring they boast exceptional strength, oxidation resistance, and long-lasting stability. Catering to industries like aerospace, power generation, chemical processing, and high-temperature engineering, Hemi Metals is committed to delivering timely supplies, technical know-how, and top-notch nickel-based alloy solutions for even the toughest applications.
Nimonic 115 Bars and Rods are primarily made up of nickel and chromium, with added aluminum, titanium, and molybdenum for strength. This well-balanced composition grants them impressive high-temperature strength, excellent creep resistance, and outstanding oxidation stability. On the mechanical side, the alloy showcases high tensile and yield strength, remarkable fatigue resistance, and dependable structural integrity, even when exposed to temperatures over 1000°C for extended periods. Its precipitation-hardened structure guarantees durability, stability, and excellent metallurgical performance in extreme conditions where heat and mechanical stress are a constant challenge.
| Grade | Nimonic 115 – UNS |
|---|---|
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |
| Nimonic 115 Round bar size | Diameter: 3mm~800mm |
| Nimonic 115 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

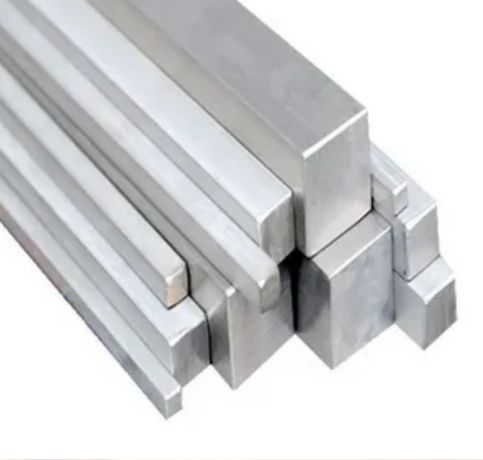

| Nimonic 115 Square bar size | 4mm*4mm~100mm*100mm |
| Nimonic 115 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 115 Hex Bar size | 2mm~100mm |
| Nimonic 115 Billet Size | 1/2″ to 495mm Diameter |

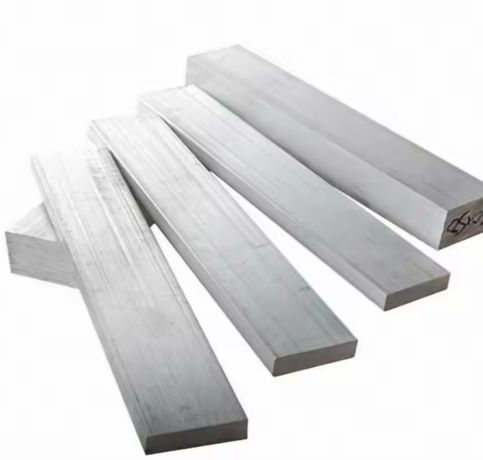

| Nimonic 115 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 115 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 115 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 54 |
| Chromium, Cr | 14.0-16.0 |
| Cobalt, Co | 13.0-15.5 |
| Aluminum, Al | 4.50-5.50 |
| Molybdenum, Mo | 3.0-5.0 |
| Titanium, Ti | 3.50-4.50 |
| Iron, Fe | 1.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Copper, Cu | 0.20 |
| Zirconium, Zr | 0.15 |
| Carbon, C | 0.12-0.20 |
| Sulfur, S | 0.015 |
| Boron, B | 0.010-0.025 |
| Tensile Strength | Min 185KSI | Min 1277MPA |
| Yield Strength | Min 141KSI | MIN 973MPA |
| Elongation | Min 38% |
| Alloy Name | Trade Name | UNS No. | British Specs | American Specs | German Specs | French Specs |
|---|---|---|---|---|---|---|
| Alloy 115 | Nimonic 115 | BS HR4 | WS 2.4636 | AFNOR NCK 15ATD |
Nimonic 115 rods are available in sizes ranging from 1/8" to 4" diameter. Finishes include cold drawn, polished, and rough turned, suitable for high-temperature applications.
Nimonic 115 rods typically come in standard sizes ranging from 1/8" to 6" in diameter, with lengths varying from 3' to 20' depending on the manufacturer and customer specifications.
Yes, Nimonic 115 rods can be supplied in both polished and matte finishes, depending on the specific requirements and customer preferences. These finishes are available from various suppliers.
These Nimonic 115 Bars and Rods find their way into applications that require exceptional high-temperature performance and mechanical reliability. In the aerospace industry, they’re used for turbine blades, exhaust systems, fasteners, and various engine components. Power generation sectors depend on them for gas turbine parts, combustor components, and high-temperature structural elements. Chemical processing facilities utilize Nimonic 115 for equipment that faces hot, corrosive environments. Additionally, the alloy is employed in industrial furnaces, heat-treatment fixtures, and high-performance engineering tools. Its unmatched combination of heat resistance, strength, and durability makes Nimonic 115 truly indispensable.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
