Nimonic 75 Bars and Rods are top-notch products made from a nickel-chromium alloy, celebrated for their exceptional resistance to heat and oxidation. Designed to handle tough service conditions, these materials perform reliably even in high-temperature and corrosive environments, making them a go-to choice for aerospace, chemical, and power-generation applications. With impressive mechanical stability, good ductility, and resistance to scaling at elevated temperatures, they ensure dependable operation. Thanks to their superior fabricability and strength retention, Nimonic 75 Bars and Rods are the preferred option for components that need to hold up under thermal stress.
This alloy primarily consists of nickel (around 75%) and chromium (about 20%), along with small amounts of titanium, aluminum, carbon, and iron to enhance strength and stability. It boasts excellent oxidation resistance up to 1000°C and maintains good creep and tensile strength at high temperatures. Its strong yield characteristics, decent ductility, and stable mechanical behavior make it easy to work with and shape. These combined features allow the material to perform consistently, even under prolonged exposure to high temperatures.
Dimension : EN, DIN, JIS, ASTM, BS, ASME, AISI
Grade : Nimonic 75 (UNS No. N06075) Round Bars
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

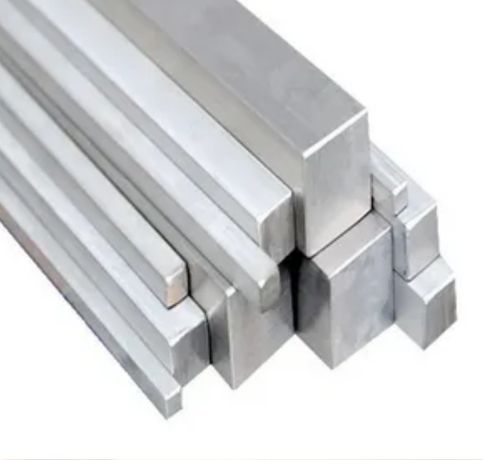

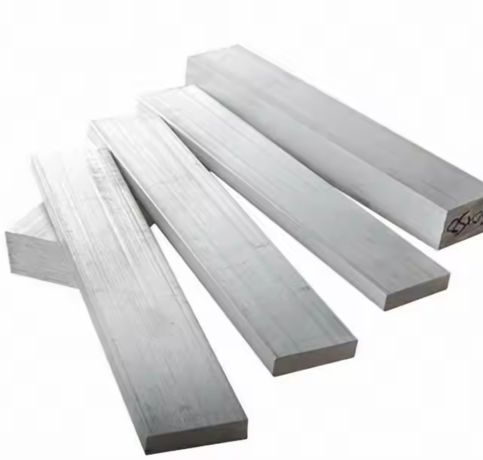

Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Application : Chemical process, Food processing, Petrochemical, Pollution control, Pulp and Paper, Refining
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished.
Our Nimonic Alloy 75 Round Bars conforms to NACE MR0175/ISO 15156
| Grade | C | Ni | Cu | Cr | Ti | Fe | Mn |
|---|---|---|---|---|---|---|---|
| Nimonic Alloy 75 | 0.08 / 0.15 | Bal | 0.5 max | 18.9 – 21.0 | 0.2 / 0.6 | 5.0 max | 1.0 max |
| Density | Modulus of Elasticity | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.37 g/cm3 | GPa – 206 | MPa – 750 | MPa – 275 | 42 % |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Nimonic Alloy 75 | – | N06075 |
Yes, Nimonic 75 bars can be recycled after use. They are composed of valuable nickel-chromium alloys, making them suitable for recycling to recover and reuse their high-performance material properties.
Yes, Nimonic 75 Bar can be welded using TIG or MIG welding methods. Proper preheating, post-weld heat treatment, and the use of matching filler materials are essential for success.
Nimonic 75 rods are available in various sizes, typically ranging from 0.125" to 6" in diameter. Common finishes include cold drawn, hot rolled, and polished, depending on application needs.
Nimonic 75 Bars and Rods find their place in high-temperature engineering applications like turbine engine parts, furnace fixtures, combustion chamber components, and heat-treatment equipment. They’re also used in superheater tubes, industrial heating systems, and chemical processing units where durable performance is a must at elevated temperatures. Additionally, the alloy is suitable for fasteners, springs, gaskets, and structural parts that face thermal and oxidative stress. Its long-term stability and reliable mechanical strength make it perfect for critical components across aerospace, power, and industrial sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
