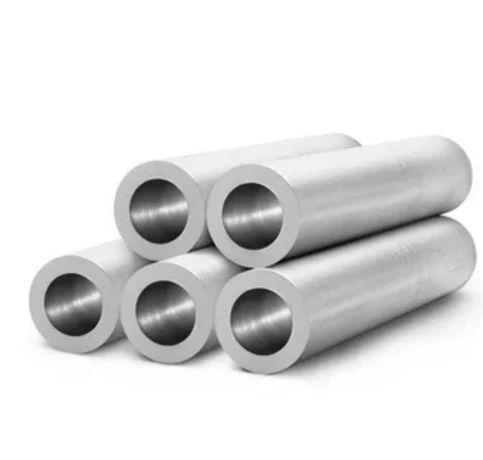

Hemi Metals, located in Hamilton, New Zealand, is a reliable manufacturer and supplier of high-quality Stainless Steel 416 Hollow Bars, perfect for precision machining and demanding industrial applications. SS 416 is a free-machining martensitic stainless steel designed for outstanding machinability, along with solid corrosion resistance and mechanical strength. With a focus on strict dimensional accuracy, uniform wall thickness, and controlled metallurgical quality, these hollow bars guarantee consistent performance and efficiency in production. Hemi Metals caters to various industries, including automotive, industrial machinery, oil & gas, and precision engineering, where accuracy, productivity, and durability are crucial.
Stainless Steel 416 is composed of about 12–14% chromium, with a carefully controlled carbon content and added sulfur to enhance machinability. While the sulfur boosts cutting performance, it does slightly compromise corrosion resistance compared to SS 410. Typically, SS 416 hollow bars achieve tensile strength between 500–700 MPa after heat treatment, offering good hardness and moderate ductility. This material is magnetic, responds well to hardening and tempering, and maintains excellent dimensional stability during machining, ensuring reliable mechanical performance.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| Hollow Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |
SS 416 hollow bars are commonly used in industries like automotive, aerospace, and petrochemicals, as well as in manufacturing pumps, valves, and gears due to their machinability and corrosion resistance.
SS 416 hollow bars are not ideal for high-temperature applications due to their reduced corrosion resistance and mechanical properties at elevated temperatures. They perform best in moderate conditions, excelling in machinability and wear resistance for general engineering uses.
Stainless Steel 416 Hollow Bars find extensive use in applications that demand superior machinability, solid strength, and moderate corrosion resistance. They are commonly used in hydraulic cylinders, bushings, pump sleeves, spacers, shafts, valve components, spindles, and precision tubular parts. In sectors like automotive, oil & gas, and industrial machinery, SS 416 hollow bars are essential for high-speed production components and rotating mechanical parts. They are also utilized in tooling, couplings, and general engineering fabrications. With their excellent machinability, strength, and cost-effectiveness, they ensure high productivity across various applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
