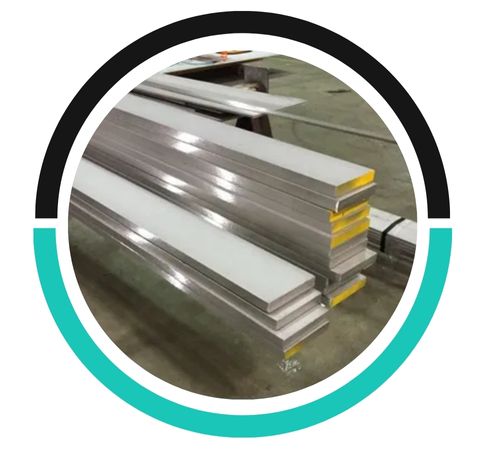

Hemi Metals, located in Hamilton, New Zealand, is a reliable manufacturer and supplier of high-quality Stainless Steel 304L Flat Bars, perfect for a variety of industrial and architectural uses. These flat bars are crafted with meticulous attention to detail, ensuring precise dimensions, a smooth surface finish, and consistent metallurgical properties that align with international quality standards. Known for their outstanding corrosion resistance, excellent weldability, and dependable mechanical strength, Hemi Metals provides these flat bars to sectors like construction, food processing, chemical handling, fabrication, and heavy engineering, where durability, hygiene, and long-lasting performance are crucial.
Stainless Steel 304L Flat Bars are made up of about 18–20% chromium and 8–12% nickel, with a low carbon content of less than 0.03%. This low carbon level helps reduce the risk of carbide precipitation during welding, enhancing resistance to intergranular corrosion. Typically, SS 304L flat bars boast a tensile strength of around 485 MPa and a yield strength close to 170 MPa, along with impressive ductility and toughness. They are non-magnetic when annealed, maintain good hardness stability, and perform reliably in both normal and moderately elevated temperature conditions.
| Specification | EN 10272, EN 10088-3 Grade 304/ 304L, 316/ 316L |
|---|---|
| Standard | API, ASME, SUS, DIN, EN, GB, UNS, ASTM, AISI |
| Sizes | 3mm to 800mm diameter |
| Length |
|
| Finish | Cold Drawn Turned, Bright Drawn, Polished, Rough Turned, Centreless Ground, Bright, Annealed, Smooth Turned, Peeled, Grinding, Black |
| Tolerances | H12, H11, K11, K12, H10, H8, H9, H13, K10, K9 |
| Surface Finish | 1D, HL, 8K, NO.4, 2D, NO.1, NO.3, 2B, BA |
| Production Method | Rolled / Forged |
| Characteristics |
|
| Value Added Services at Suraj Metal |
|
| Other available forms | Forging, Profiles, T-Bar, Rod, Hollow, Triangle, Channel, Threaded, Ingot, Rounds, Rectangle, Blocks, Billet, I/H, Half-Round, Angle, Precision-Ground |
| Element | C | Cr | Mn | Ni | P | S | Si |
|---|---|---|---|---|---|---|---|
| SS 304L | 8.0 – 11.0 | 18.0 – 20.0 | 2.0 max | 8.0 – 11.0 | 0.045 max | 0.03 max | 1.0 max |
| Element | Tensile Strength | Yield Strength | Elongation | Reduction in Area | Hardness |
|---|---|---|---|---|---|
| SS 304L | Psi – 85,000 | Psi – 45,000 | 50% | 55% | Rb 180 |
| FlatS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
| FlatS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
The typical thickness range of Stainless Steel 304L flat bars varies from 1/16 inch (1.5 mm) to 6 inches (150 mm). The exact thickness depends on the application requirements, with custom sizes available for specific industry needs.
Yes, Stainless Steel 304L flat bars can be welded using various techniques, such as TIG, MIG, or stick welding. Its excellent weldability is one of its key features, though proper precautions should be taken to avoid distortion or corrosion.
Stainless Steel 304L Flat Bars find extensive use in situations where corrosion resistance, cleanliness, and weldability are paramount. They are often utilized in the fabrication of frames, brackets, support structures, base plates, kitchen equipment, and architectural elements. In industries like food, dairy, and pharmaceuticals, SS 304L flat bars are perfect for hygienic processing equipment and structural supports. Additionally, they are employed in chemical storage systems, heat exchangers, pressure vessels, and general engineering projects. Their superb surface finish, ease of fabrication, and resistance to oxidation guarantee long-lasting performance in both indoor and outdoor settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hemi Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Hamilton New Zealand
